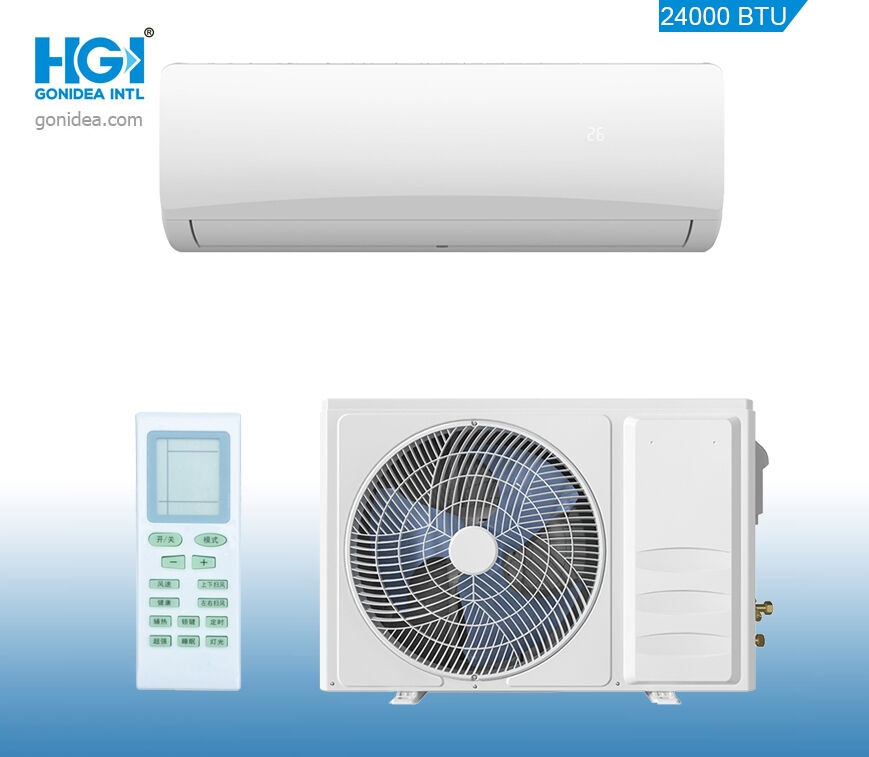

Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6
  • Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6
  • Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6
  • Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6
  • Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6
  • Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6
Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6

Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6

Rincian Produk
Menyoroti:

Pendingin udara dinding 24000BTU

,

AC frekuensi inverter T3

,

Kondisi udara gantung dinding bertenaga rendah

Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
100
Harga
280
Deskripsi Produk
Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operation Inverter Frequency Air Conditioner SP/J-T70CH6
Deskripsi Produk
DC FIXED FRECUENCY SP/J-T35C6 SP/J-T35CH6 SP/J-T50CH6 SP/J-T70CH6
Pasokan daya nominal 1Ph / 230V/60Hz 1Ph / 230V/60Hz 1Ph / 230V/60Hz 1Ph / 230V/60Hz
Sumber daya listrik yang dapat digunakan 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz 1Ph / 198-264V/60Hz
Pendinginan T3 Kapasitas (btu/jam) 12000 12000 18000 24000
Kapasitas (W) 3300 3300 4770 6180
Input (W) 1200 1200 1830 2290
Listrik nominal (A) 5.40 5.40 8.20 10.20
EER ((Btu/h/W/W) 9.38 9.38 8.89 9.21
EER ((W/W) 2.75 2.75 2.61 2.70
Pemanasan Kapasitas (btu/jam) / 11200 18000 24000
Kapasitas (W) / 3300 5280 7000
Input (W) / 900 1560 2100
Listrik nominal (A) / 4.00 7.00 9.30
EER ((Btu/h/W/W) / 12.51 11.55 11.37
EER ((W/W) / 3.67 3.38 3.33
Maks. konsumsi input (W) 1680 1680 2260 3000
Maks. arus (A) 8.6 8.6 11.6 14.6
Kompresor Jenis Rotary Rotary Rotary Rotary
Merek GMCC, GREE GMCC, GREE GMCC, GREE GMCC, GREE
Unit dalam ruangan Koil dalam ruangan Bahan sirip Emas & hidrofilik Emas & hidrofilik Emas & hidrofilik Emas & hidrofilik
Tabung luar dia. dan material φ7mm, dalaman Grooved φ7mm, dalaman Grooved φ7mm, dalaman Grooved φ7mm, dalaman Grooved
Aliran udara dalam ruangan (Turbo/Hi/Mi/Lo) (M3/h) 850/750/650/580 850/750/650/580 1050/950/800/680 1150/980/800/700
Daya input nominal (pendingin/pemanasan) (W) 35 35 45 45
Listrik nominal (pendingin/pemanasan) (A) 0.35 0.35 0.4 0.4
Penghapusan Kelembaban (KG/jam) 1.0 1.0 1.8 2.6
Tingkat kebisingan ((Turbo/Hi/Mi/Lo) (dB ((A)) 43/39/37/33 43/39/37/33 45/42/39/37 49/47/45/42
Ukuran satuan (W*H*D) 910*295*205 910*295*205 1075*330*240 1075*330*240
Pengemasan (W*H*D) 975 x 340 x 255 975 x 340 x 255 1146*412*318 1146*412*318
Berat bersih (kg) 11 11 15 15
Berat kotor (kg) 13 13 18 18
Unit luar Koil luar Bahan sirip Emas & hidrofilik Emas & hidrofilik Emas & hidrofilik Emas & hidrofilik
Tabung luar dia. dan material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Tingkat kebisingan (dB) 52 52 55 58
Ukuran satuan (W*D*H) (mm) 760*305*550 760*305*550 850*385*700 900*395*700
Pengemasan (W*D*H) (mm) 869*339*588 869*339*588 960*420*744 1033*439*733
Berat bersih (kg) 29 30 43 46
Berat kotor (kg) 34 35 49 52
Jenis pendingin R410A R410A R410A R410A
Pipa pendingin Sisi cair (mm) Φ6 Φ6 Φ6 Φ6
Sisi gas (mm) Φ12 Φ12 Φ12 Φ15.88
Panjang pipa pendingin maksimum (m) 10 10 10 15
Max. perbedaan tingkat (m) 5 5 5 10
Kisaran suhu operasi 16oC-52oC -7oC-52oC -7oC-52oC -7oC-52oC
Kisaran suhu lingkungan 16oC-55oC -7oC-55oC -7oC-55oC -7oC-55oC
Daerah aplikasi (MM2) 13 ~ 28 13 ~ 28 20 ~ 40 30 ~ 55
Set per 40ft HQ/20ft 40HQ/20 267/- 267/- 146/- 135/61
Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6 Modern Wall Mounted Air Conditioner Seri 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH6
