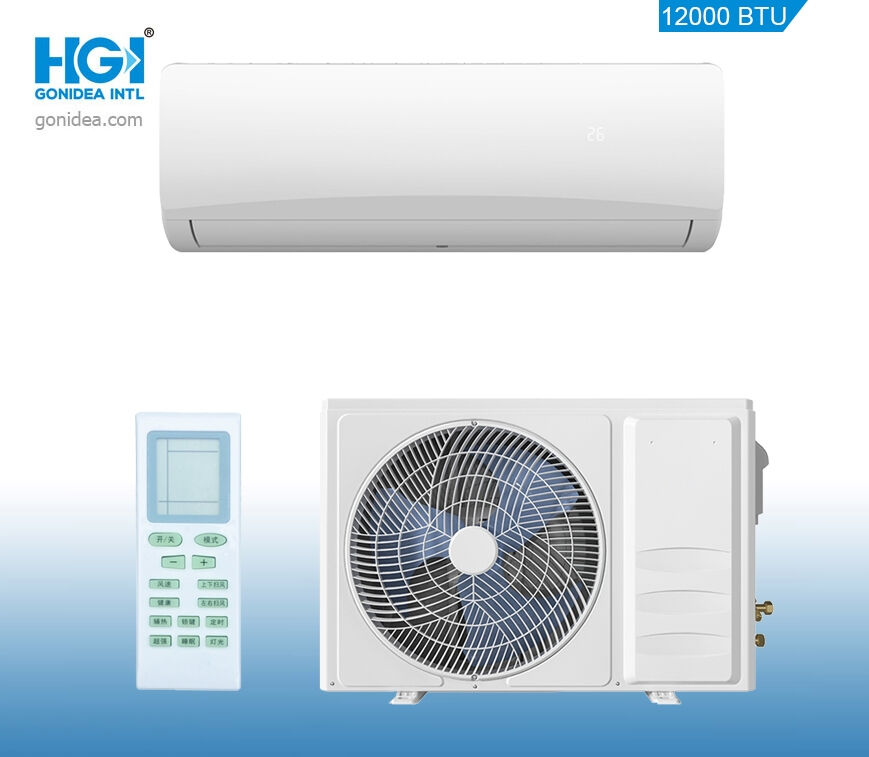

Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner Sp/J-Bp2a-35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner Sp/J-Bp2a-35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner Sp/J-Bp2a-35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner Sp/J-Bp2a-35CH
  • Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner Sp/J-Bp2a-35CH
Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner Sp/J-Bp2a-35CH

Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner Sp/J-Bp2a-35CH

Sertifikasi CE, CCC, RoHS, GS, CB
Rincian Produk
Model TIDAK.:
SP/J-BP2A-35CH
Penggunaan:
Ruang
Kebisingan Mesin Dalam Ruangan:
42/39/36/33
Standar Efisiensi Energi Tiongkok:
tingkat 2
Pendinginan/Pemanasan:
Hanya Pendinginan
Sumber Daya:
Listrik
Tipe Daya:
DC
Kondisi:
Baru
Catu Daya Terukur:
1pH / 220-240V/50Hz
Kisaran Suhu Asi:
-7℃-43℃
Paket Transportasi:
Karton
Spesifikasi:
R410A
Merek dagang:
HGI
Asal:
Cina
Kode HS:
8415102100
Kapasitas Produksi:
500000/PCS Per Tahun
Menyoroti:

pendingin udara dinding 12000BTU

,

frekuensi inverter AC hemat daya

,

wall hanging air conditioner dengan garansi

Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
100
Harga
280
Deskripsi Produk
Fashionable Wall Mounted Air Conditioner Series 12000BTU Low-Power Operating Inverter Frequency Air Conditioner SP/J-BP2A-35CH
Deskripsi Produk
DC INVERTER SP/J-BP2A-26CH SP/J-BP2A-35CH SP/J-BP2A-50CH SP/J-BP2A-70CH
Pasokan daya nominal 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz
Sumber daya listrik yang dapat digunakan 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz
Pendinginan Kapasitas (btu/jam) 9000 12000 18000 24000
Kapasitas (W) 2500 ((150 ~ 3000) W 3200 ((150 ~ 3600) W 5100 ((1250-5910) 7100 ((1830~7800)
Input (W) 900 ((100~1200) W 1180 ((75~1560) W 1560 ((330-2340) 2260 ((410 ~ 2830)
Listrik nominal (A) 4.0 (0.8 ~ 5.3) A 5.3 ((0.5 ~ 6.9) A 6.9 ((1.7 ~ 12.0) 10.1 ((2.3 ~ 12.3)
Pdesain (W) 2500 3200 5100 7100
EER 6.10 6.10 6.10 6.10
Pemanasan Kapasitas (btu/jam) 9000 12000 18000 24000
Kapasitas (W) 2800 ((150~3300) W 3400 ((150 ~ 3800) W 5100 ((1250-6070) 7100 ((1850~7900)
Input (W) 960 ((75~1260) W 1160 ((75~1580) W 1470 ((340-2520) 2040 ((420 ~ 3000)
Listrik nominal (A) 4.3 ((0.5 ~ 5.6) 5.2 ((0.5 ~ 7.0) A 6.6 ((1.7 ~ 13.0) 9.1 ((2.3 ~ 13.5)
Pdesain (W) 2000 2100 3800 5000
COP 4.0 4.0 4.0 4.0
Maks. konsumsi input (W) 1600 1720 2700 3200
Maks. arus (A) 8.00 9.00 13.00 15.80
Kompresor Merek GMCC GMCC GMCC GMCC
Jenis Rotary Rotary Rotary Rotary
Unit dalam ruangan Koil dalam ruangan Bahan sirip Emas & hidrofil & Emas & hidrofil & Emas & hidrofil & Emas & hidrofil &
Tabung luar dia. dan material φ5mm, Inner Grooved φ5mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Aliran udara dalam ruangan (Turbo/Hi/Mi/Lo) (M3/h) 500/450/370/320 550/500/450/370 850/750/650/580 1050/950/800/680
Daya input nominal (pendingin/pemanasan) (W) 30 30 35 45
Listrik nominal (pendingin/pemanasan) (A) 0.2 0.2 0.35 0.4
Penghapusan Kelembaban (KG/jam) 0.8 1.2 2 2.6
Tingkat kebisingan ((Turbo/Hi/Mi/Lo) (dB ((A)) 39/34/32/30 42/39/36/33 45/42/39/37 49/47/45/42
Ukuran satuan (W*H*D) 695 x 275 x 190 780 x 275 x 190 910*295*205 1075*330*240
Pengemasan (W*H*D) 763*322*241 847*322*241 975 x 340 x 255 1146*412*318
Berat bersih (kg) 6 7 11 15
Berat kotor (kg) 8 9 13 18
Unit luar Koil luar Bahan sirip Emas & hidrofil & Emas & hidrofil & Emas & hidrofil & Emas & hidrofil &
Tabung luar dia. dan material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Tingkat kebisingan (dB) 50 52 55 59
Ukuran satuan (W*D*H) (mm) 710*295*495 710*295*495 780*350*600 850*385*700
Pengemasan (W*D*H) (mm) 818*328*530 818*328*530 896*387*625 960*420*744
Berat bersih (kg) 22 22 29 38
Berat kotor (kg) 25 25 33 42
Jenis pendingin R32 R32 R32 R32
Pipa pendingin Sisi cair (mm) Φ6 Φ6 Φ6 Φ6
Sisi gas (mm) Φ9 Φ9 Φ12 Φ12
Panjang pipa pendingin maksimum (m) 10 10 10 15
Max. perbedaan tingkat (m) 5 5 5 10
Kisaran suhu operasi -7oC-43oC -7oC-43oC -7oC-43oC -7oC-43oC
Kisaran suhu lingkungan -15oC-48oC -15oC-48oC -15oC-48oC -15oC-48oC
Daerah aplikasi (MM2) 10 ~ 17 13 ~ 27 20 ~ 40 30 ~ 55
Set per 40ft HQ/20ft 40HQ/20 346/- 334/143 230/99 146/-
