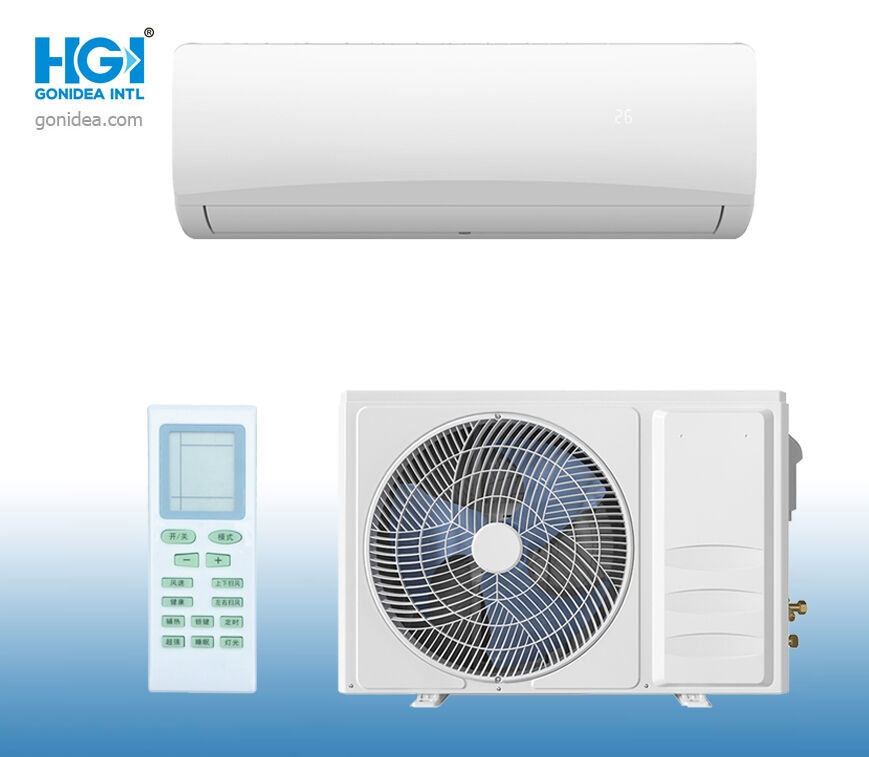

Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH
Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH

Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH

Sertifikasi CE, CCC, RoHS, GS, CB
Rincian Produk
Model TIDAK.:
SP/J-T70CH
Penggunaan:
Ruang
Kebisingan Mesin Dalam Ruangan:
52/49/47/45
Standar Efisiensi Energi Tiongkok:
Level 2
Pendinginan/pemanasan:
Pendinginan/pemanasan
Sumber Daya:
Listrik
Tipe Daya:
DC
Kondisi:
Baru
Catu daya terukur:
1pH / 220-240V/50Hz
Kisaran Suhu Asi:
-7℃-43℃
Paket Transportasi:
Karton
Spesifikasi:
R410A
Merek dagang:
HGI
Asal:
Cina
Kode Hs:
8415102100
Kapasitas Produksi:
500000/PCS Per Tahun
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
100
Harga
280
Deskripsi Produk
Fashionable Wall Mounted Air Conditioner Seri 9000BTU T3 Low-Power Operasi Inverter Frekuensi AC SP/J-T70CH
Deskripsi Produk

DC FIXED FRECUENCY SP/J-T35CH SP/J-T50CH SP/J-T70CH
Pasokan daya nominal 1Ph/220-240V/50Hz 1Ph/220-240V/50Hz 1Ph/220-240V/50Hz
Sumber daya listrik yang dapat digunakan 1Ph/185-260V/50Hz 1Ph/185-260V/50Hz 1Ph/185-260V/50Hz
Pendinginan ((T3) Kapasitas (btu/jam) 12000 18000 24000
Kapasitas (W) 2650 4200 5400
Input (W) 1500 2000 2360
Listrik nominal (A) 6.7 8.9 11
EER 1.77 2.1 2.29
Pemanasan Kapasitas (btu/jam) 12000 18000 24000
Kapasitas (W) 3500 5000 5800
Input (W) 1160 1660 2100
Listrik nominal (A) 5.40 7.40 9.80
COP 3.02 3.01 2.76
Maks. konsumsi input (W) 1750/1650 2500/2500 3000
Maks. arus (A) 7.9/7.2 11.6/11.1 14.8
Kompresor Jenis Rotary Rotary Rotary
Merek GREE GREE Sangat keras.
Unit dalam ruangan Koil dalam ruangan Bahan sirip Emas & hidrofilik& Emas & hidrofilik& Emas & hidrofilik&
Tabung luar dia. dan material φ7mm, Inner Grooved φ7mm, Inner Grooved φ7mm, Inner Grooved
Aliran udara dalam ruangan (Turbo/Hi/Mi/Lo) (M3/h) 650/600/550/500 900/820/780/700 1050/950/800/700
Daya input nominal (pendingin/pemanasan) (W) 50 60 80
Listrik nominal (pendingin/pemanasan) (A) 0.25 0.3 0.35
Penghapusan Kelembaban (KG/jam) 2 1.8 2.6
Tingkat kebisingan ((Turbo/Hi/Mi/Lo) (dB ((A)) 42/38/35/32 45/43/41/39 52/49/47/45
Ukuran satuan (W*H*D) 810 × 295 × 205 910×295×205 1075×330×240
Pengemasan (W*H*D) 875×340×255 975×340×255 1146×412×318
Berat bersih (kg) 8 9 12
Berat kotor (kg) 10 11 16
Unit luar Koil luar Bahan sirip Emas & hidrofilik& Emas & hidrofilik& Emas & hidrofilik&
Tabung luar dia. dan material φ7, Inner Grooved φ7, Inner Grooved φ5, Inner Grooved
Tingkat kebisingan (dB) 52 55 58
Ukuran satuan (W*D*H) (mm) 710 × 295 × 495 780 × 350 × 600 850 × 385 × 700
Pengemasan (W*D*H) (mm)  818×328×530 896×387×625 960×420×744
Berat bersih (kg) 23 38 42
Berat kotor (kg) 26 42 47
Jenis pendingin R410A R410A R410A
Pipa pendingin Sisi cair (mm) φ6 φ6 φ6
Sisi gas (mm) φ9 φ12 φ15.88
Panjang pipa pendingin maksimum (m) 10 15 15
Max. perbedaan tingkat (m) 5 10 10
Kisaran suhu operasi -7oC-52oC 7oC-52oC -7oC-52oC
Kisaran suhu lingkungan -10oC-55oC -10oC-55oC -10oC-55oC
Daerah aplikasi (MM2) 13 ~ 27 20 ~ 40 30 ~ 55
Set per 40 kaki HQ/20 kaki 40HQ/20 308/- 230/99 146/-
Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 0Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 1Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 2Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 3Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 4
Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 5Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 6Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 7Fashionable Wall Mounted Air Conditioner Series 24000BTU T3 Low-Power Operasi Inverter Frekuensi AC Sp/J-T70CH 8
