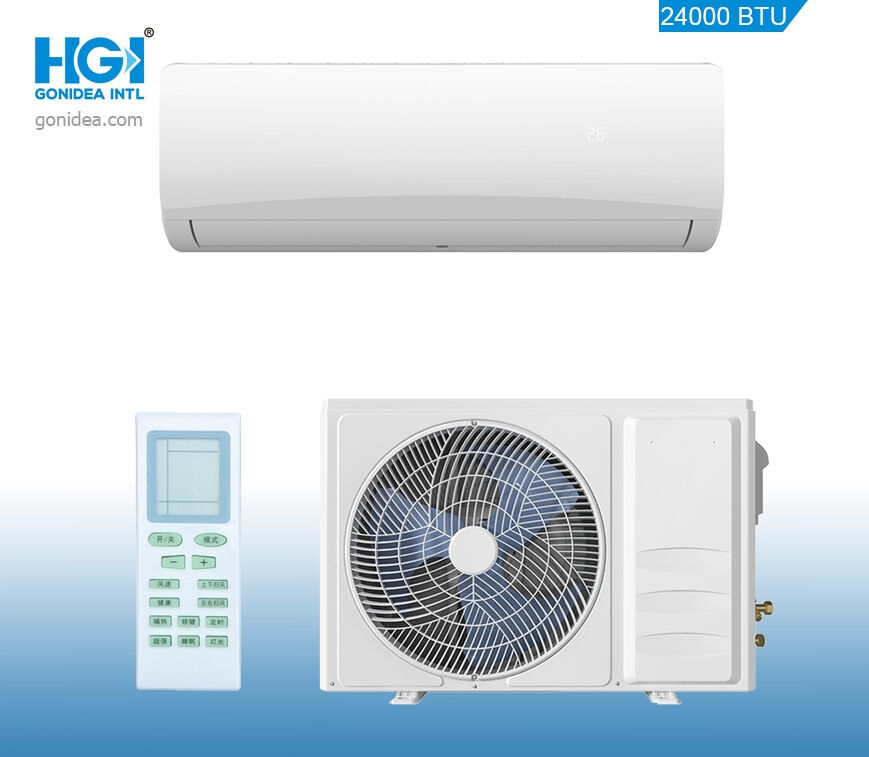

Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
  • Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH
Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH

Fashionable Wall Mounted Air Conditioner Series 24000BTU Low-Power Operation Inerter Frequency Air Conditioner Sp/J-Bp70CH

Sertifikasi CE, CCC, RoHS, GS, CB
Rincian Produk
Model TIDAK.:
SP/J-BP70CH
Penggunaan:
Ruang
Kebisingan Mesin Dalam Ruangan:
49/47/45/42
Standar Efisiensi Energi Tiongkok:
tingkat 2
Pendinginan/Pemanasan:
Hanya Pendinginan
Sumber Daya:
Listrik
Tipe Daya:
DC
Kondisi:
Baru
Catu Daya Terukur:
1pH / 220-240V/50Hz
Kisaran Suhu Asi:
-7℃-43℃
Paket Transportasi:
Karton
Spesifikasi:
R410A
Merek dagang:
HGI
Asal:
Cina
Kode HS:
8415102100
Kapasitas Produksi:
500000/PCS Per Tahun
Menyoroti:

Pendingin udara dinding 24000BTU

,

AC inverter bertenaga rendah

,

AC gantung dinding yang modis

Ketentuan Pembayaran & Pengiriman
Kuantitas min Order
100
Harga
280
Deskripsi Produk
Pendingin Udara Terpasang di Dinding Seri 24000BTU Pengoperasian Daya Rendah Pendingin Udara Frekuensi INERTER SP/J-BP70CH
Deskripsi Produk

INVERTER DC SP/J-BP26CH SP/J-BP35CH SP/J-BP50CH SP/J-BP70CH
Catu daya terukur 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz 1Ph / 220-240V/50Hz
Catu daya yang bisa diterapkan 1Ph / 150-260V/50Hz 1Ph / 150-260V/50Hz 1Ph / 160-260V/50Hz 1Ph / 160-260V/50Hz
Pendinginan Kapasitas(btu/jam) 9000 12000 18000 24000
Kapasitas(W) 2500(150~3000)W 3200(150~3500)W 4800(1250-5910) 6810(1830~7800)
Masukan(W) 900(100~1200)W 1280(75~1560)W 1780(330-2340) 2350(410~2830)
Nilai saat ini(A) 4.0 (0.8~5.3)A 5.7(0.5~6.9)SEBUAH 7.9(1.7~12.0) 10.5(2.3~12.3)
EER 2.78  2.50  2.70  2.90
Pemanas Kapasitas(btu/jam) 9000 12000 18000 24000
Kapasitas(W) 2800(150~3300)W 3300(150~3700)W 4800(1250-6070) 6870(1850~7900)
Masukan(W) 960(75~1260)W 1260(75~1580)W 1670(340-2520) 2240(420~3000)
Nilai saat ini(A) 4.3(0.5~5.6) 5.6(0.5~7.0)SEBUAH 7.5(1.7~13.0) 10.0(2.3~13.5)
POLISI 2.92  2.62 2.87  3.07
Maks. konsumsi masukan(W) 1600  1720  2520  3100
Maks. saat ini(A) 8.50  9.00  13.00  14.80
Kompresor Jenis Putar Putar Putar Putar
Merek GMCC,LUAR BIASA GMCC GMCC GMCC
Unit dalam ruangan Kumparan Dalam Ruangan Bahan sirip Emas & hidrofilik& Emas & hidrofilik& Emas & hidrofilik& Emas & hidrofilik&
Tabung luar dia.dan bahan φ7mm, Beralur Bagian Dalam φ7mm, Beralur Bagian Dalam φ7mm, Beralur Bagian Dalam φ7mm, Beralur Bagian Dalam
Aliran udara dalam ruangan (Turbo/Hi/Mi/Lo)(M3/jam) 500/450/370/320 550/500/450/370 850/750/650/580 1050/950/800/680
Nilai masukan Daya (pendinginan/pemanasan)(W) 30 30 35 45
Nilai saat ini(pendinginan/pemanasan)(A) 0,2 0,2 0,35 0,4
Penghapusan Kelembaban(KG/jam) 0,8 0,8 2 2.6
Tingkat kebisingan (Turbo/Hi/Mi/Lo)(dB(A)) 39/34/32/30 42/39/36/33 45/42/39/37 49/47/45/42
Dimensi satuan (L*T*D) 695×275×190 780×275×190 910×295×205 1075×330×240
Pengepakan (L*T*D) 763×322×241 847×322×241 975×340×255 1146×412×318
Berat bersih(KG) 6 7 10 14
Berat kotor(KG) 8 9 12 18
Unit luar ruangan Kumparan luar ruangan Siripbahan Emas & hidrofilik& Emas & hidrofilik& Emas & hidrofilik& Emas & hidrofilik&
Tabung luar dia.dan bahan φ7mm, Beralur Bagian Dalam φ7mm, Beralur Bagian Dalam φ7mm, Beralur Bagian Dalam φ7mm, Beralur Bagian Dalam
Tingkat kebisingan(dB) 50 52 55 59
Dimensi satuan (L*D*T)(mm) 710×295×495 710×295×495 760×305×550 780×350×600
Sedang mengemas(L*D*T)(mm)  818×328×530 818×328×530 869×339×588 896×387×625
Berat bersih(KG) 20 21 24 30
Berat kotor(KG) 23 24 28 34
Jenis pendingin R410A / 520g R410A / 560g R410A / 770g R410A / 1070g
Pipa pendingin Sisi cair(mm) Φ6 Φ6 Φ6 Φ6
Sisi gas(mm) Φ9 Φ9 Φ12 Φ15.88
Maks. panjang pipa pendingin (m) 10 10 10 15
Maks. perbedaan tingkat(M) 5 5 5 10
Kisaran suhu pengoperasian -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC -7ºC-43ºC
Kisaran suhu sekitar -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC -7ºC-48ºC
Daerah aplikasi(MM2) 10~17 13~27 20~40 30~55
Set per 40 kaki HQ/20 kaki40markas besar/20 340/- 334/143 267/- 186/81
